Product Overview
The ACTIONSGLOBALUSINC AV Access HDMI USB Extender(HDBaseT) KVM is a KVM Switches product by ACTIONSGLOBALUSINC. It features 【4k@60hz and 1080p@120hz over 100m】with the hdbaset 2.0 uncompressed technology,.
Key Features
- 【4K@60Hz and 1080P@120Hz over 100m】With the HDBaseT 2.0 uncompressed technology, the device can extend 4K@60Hz ultra HD (YUV4:2:0 8bit) HDMI signal over single Cat 5e/6/6a/7 cable up to 330ft/100m. With audio input/output ports both on transmitter and receiver, it also supports bi-directional 3.5mm stereo pass through.

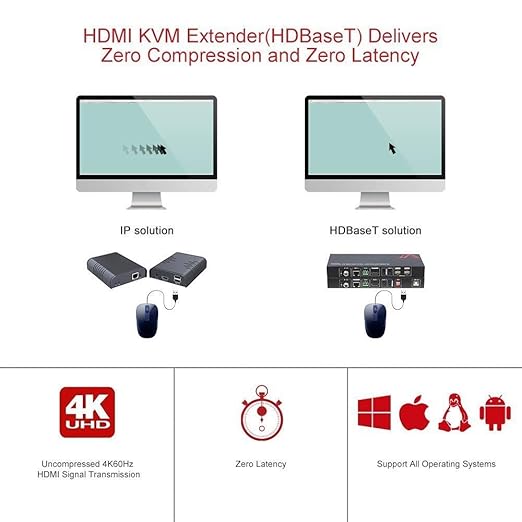

- 【High-speed USB 2.0 up to 480Mbps】It provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps pass through over HDBaseT with zero delay.

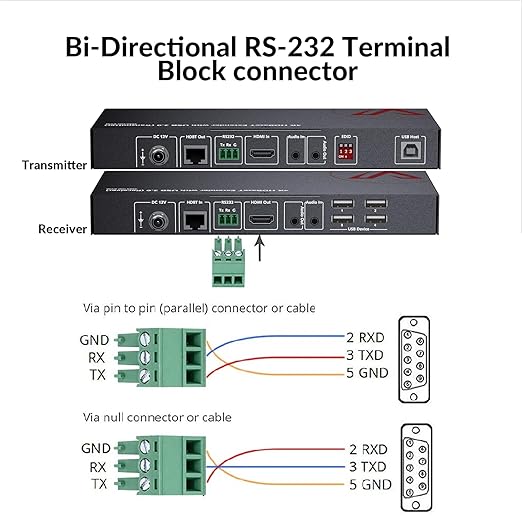

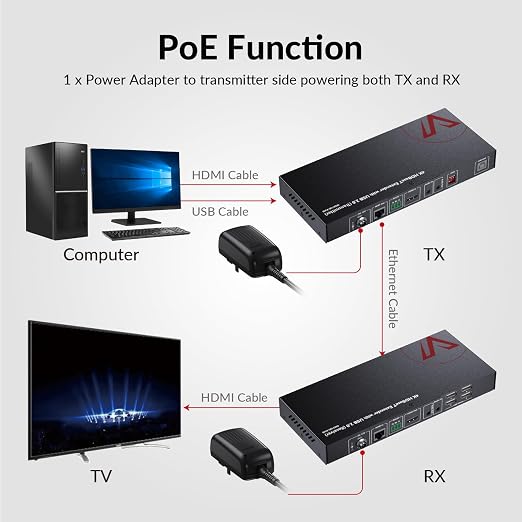

- 【Main Functions】No video loss, no time delay, with one way PoE(from transmitter to receiver), RS232 pass through over HDBaseT; DIP switch for EDID management; USB 2.0 pass through,1 x USB-Host connector built in transmitter and 4 x USB-Devices connector built in receiver;
- It doesn't support HDCP】when connecting 2 or above USB devices to the receiver, please make sure that each ports power consumption is less than 5V 0.5A.
- 【Durability】Certificated by FCC, CE. Built-in surge/Lightning protection -Superior ESD protection: +/- 8KV (Air-gap discharge) +/- 4KV (contact discharge).
Why Choose the ACTIONSGLOBALUSINC AV Access HDMI USB Extender(HDBaseT) KVM
The ACTIONSGLOBALUSINC AV Access HDMI USB Extender(HDBaseT) KVM offers 【4k@60hz and 1080p@120hz over 100m】with the hdbaset 2.0 and 【high-speed usb 2.0 up to 480mbps】it provides remote. These features make the ACTIONSGLOBALUSINC AV Access HDMI USB Extender(HDBaseT) KVM a strong option in the KVM Switches category.
Best For
The ACTIONSGLOBALUSINC AV Access HDMI USB Extender(HDBaseT) KVM is best suited for everyday kvm switches needs.
Quick Summary
The ACTIONSGLOBALUSINC AV Access HDMI USB Extender(HDBaseT) KVM is a KVM Switches product by ACTIONSGLOBALUSINC. Operation Mode: manual. Current Rating: 2 Amps. Operating Voltage: 12 Volts. Contact Type: Normally Open. Connector Type: Plug In. Price: $428.98.
Product Specifications
| Specification | Details |
|---|---|
| Operation Mode | manual |
| Current Rating | 2 Amps |
| Operating Voltage | 12 Volts |
| Contact Type | Normally Open |
| Connector Type | Plug In |
| Brand | v AV Access |
| Terminal | Through Hole |
| Item dimensions L x W x H | 9.84 x 5.12 x 0.79 inches |
| Circuit Type | 2-way |
| Contact Material | Metal |
| Switch Type Push Button | Material Metal |
| Mounting Type Panel Mount | Specification Met CE |
