Product Overview

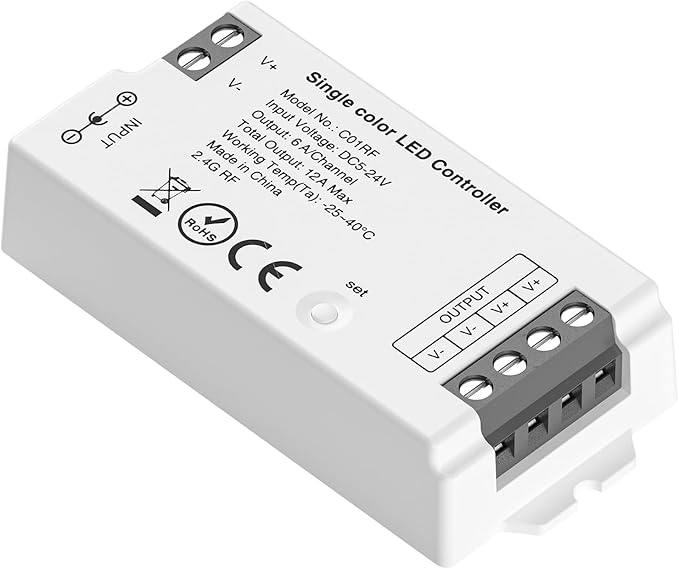

The BTF-LIGHTING C01RF Tuya Controller Support PWM 5050SMD FCOB COB Single Color (+V -V) 2pin LED Strip Support with RC01RFB WR02RF Remote DC5V/DC12V/DC24V Max 12A Indoor Use Only(NO Remote NO Power) is a LED Strip Lights product. It features 【compatible lights】only support pwm 5050smd 3528smd 5630smd single color fcob.
Key Features
- 【Compatible Lights】Only support PWM 5050SMD 3528SMD 5630SMD Single Color FCOB COB Single Color 2 wires(+V -V) LED strip Neon Rope light. CAN NOT work with SPI LED strip light with IC, such as WS2811, WS2812B, WS2813, WS2814, WS2815, SK6812 etc. Power: 6A/Channel Total output max 12A.DC5V 60W max.DC12V 144W max. DC24V 288W max.

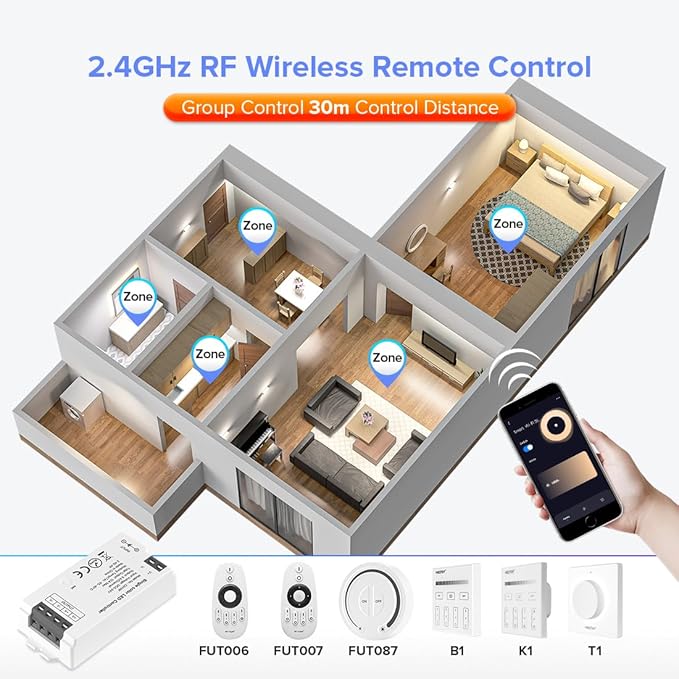

- 【Two control methods】1.Must work with matching RF Remote. 2. Must work with Tuya Gateway/Bridge. Without RF Remote or Tuya Gateway the controller can not work. 2.4GHz RF remote : WR02RF, RF01RFB RF remote. Tuya Gateway : GW01W .

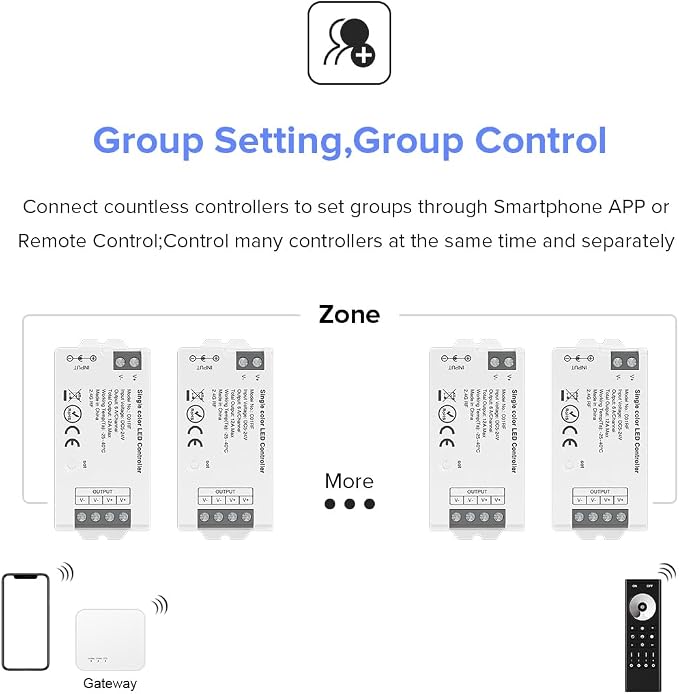

- 【Suitable For The Project】1.Multi zone control,Multiple controllers required. 2.Need 2.4GHz RF Remote or TuyaSmart SmartLife APP WiFi Control. 3. No need Bluetooth or WiFi. 4.Need Alexa or Google home third party voice control. 5.Cost effective LED project.

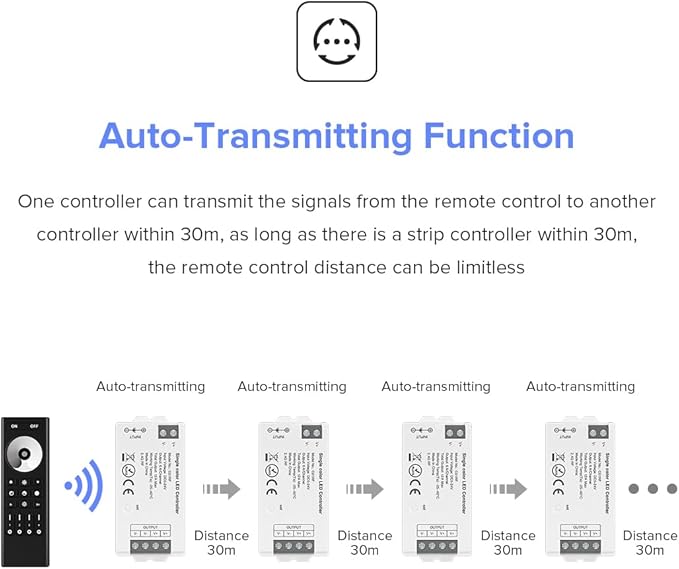

- 【Auto-transmitting Synchronization function】 One controller can transmit the signal from the remote control to the another controller within 99ft(30 meters). As long as there is a LED strip controller within 99ft(30 meters), the remote control distance can be limitless.Auto-Synchronization Function.Different controllers can work synchronously when they are started at different times, controlled by the same remote control at the same dynamic mode and with the same speed.
- 【 Works with Tuya Gateway ,But Tuya Gateway is not included】Work with GW01W Wi-Fi+Bluetooth Dual Mode Tuya gateway/Bridge . Support Smart life and Tuya Smart APP . Can compatible with third-party voice control., Such as Alexa and Google home. Timmer setting, Device sharing, Tap-to-run, Automation, Don't disturb mode.
- 【Package content】1X C01RF Tuya Controller. Note: There is no RF Remote or Gateway.Remote and gateway need to be purchased separately.
Why Choose the BTF-LIGHTING C01RF Tuya Controller Support PWM 5050SMD FCOB COB Single Color (+V -V) 2pin LED Strip Support with RC01RFB WR02RF Remote DC5V/DC12V/DC24V Max 12A Indoor Use Only(NO Remote NO Power)
The BTF-LIGHTING C01RF Tuya Controller Support PWM 5050SMD FCOB COB Single Color (+V -V) 2pin LED Strip Support with RC01RFB WR02RF Remote DC5V/DC12V/DC24V Max 12A Indoor Use Only(NO Remote NO Power) offers 【compatible lights】only support pwm 5050smd 3528smd 5630smd single and 【two control methods】1.must work with matching rf remote.. These features make the BTF-LIGHTING C01RF Tuya Controller Support PWM 5050SMD FCOB COB Single Color (+V -V) 2pin LED Strip Support with RC01RFB WR02RF Remote DC5V/DC12V/DC24V Max 12A Indoor Use Only(NO Remote NO Power) a strong option in the LED Strip Lights category.
Best For
The BTF-LIGHTING C01RF Tuya Controller Support PWM 5050SMD FCOB COB Single Color (+V -V) 2pin LED Strip Support with RC01RFB WR02RF Remote DC5V/DC12V/DC24V Max 12A Indoor Use Only(NO Remote NO Power) is best suited for: Auto-transmitting function, DC5V DC12V DC24V, Expand functions, Multi zone control, Work with RF Remote Tuya Gateway Auto-transmitting function, DC5V DC12V DC24V, Expand functions, Multi zone control, Work with RF Remote Tuya Gateway, The Project】1.
Quick Summary
The BTF-LIGHTING C01RF Tuya Controller Support PWM 5050SMD FCOB COB Single Color (+V -V) 2pin LED Strip Support with RC01RFB WR02RF Remote DC5V/DC12V/DC24V Max 12A Indoor Use Only(NO Remote NO Power) is a LED Strip Lights product by BTF-LIGHTING. Brand: BTF-LIGHTING. Special Feature: Auto-transmitting function, DC5V DC12V DC24V, Expand functions, Multi zone control, Work with RF Remote Tuya Gateway Auto-transmitting function, DC5V DC12V DC24V, Expand functions, Multi zone control, Work with RF Remote Tuya Gateway. Color: Single Color. Compatible Devices: LED Light Strip, RF Remote (WR02RF, RF01RFB), Tuya Gateway (GW01W). Connectivity Technology: Wi-Fi. Price: $24.73.
Product Specifications
| Specification | Details |
|---|---|
| Brand | BTF-LIGHTING |
| Special Feature | Auto-transmitting function, DC5V DC12V DC24V, Expand functions, Multi zone control, Work with RF Remote Tuya Gateway Auto-transmitting function, DC5V DC12V DC24V, Expand functions, Multi zone control, Work with RF Remote Tuya Gateway |
| Color | Single Color |
| Compatible Devices | LED Light Strip, RF Remote (WR02RF, RF01RFB), Tuya Gateway (GW01W) |
| Connectivity Technology | Wi-Fi |
