Product Overview
The CalDigit TS3 Plus Thunderbolt 3 Dock - 87W Charging is a Docking Stations product. It features 2x thunderbolt 3 40gb/s, displayport 1.2, 5x usb-a & 1.
Key Features

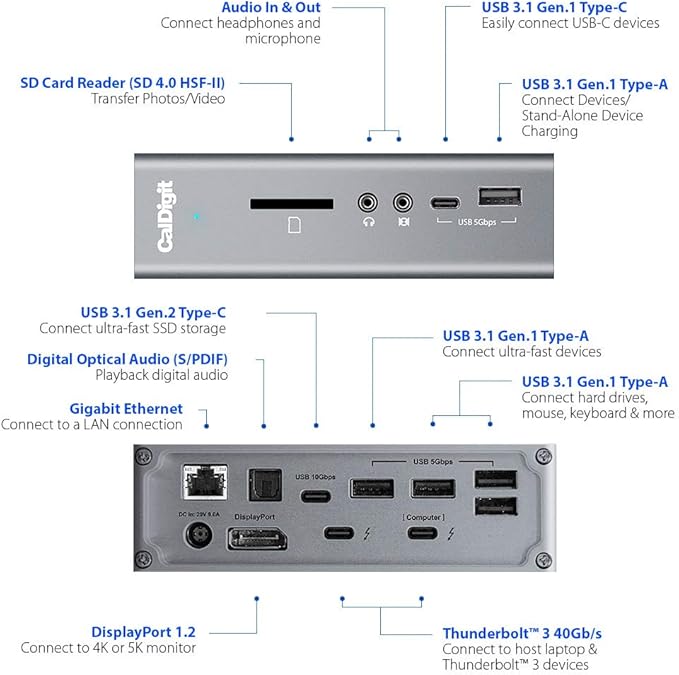

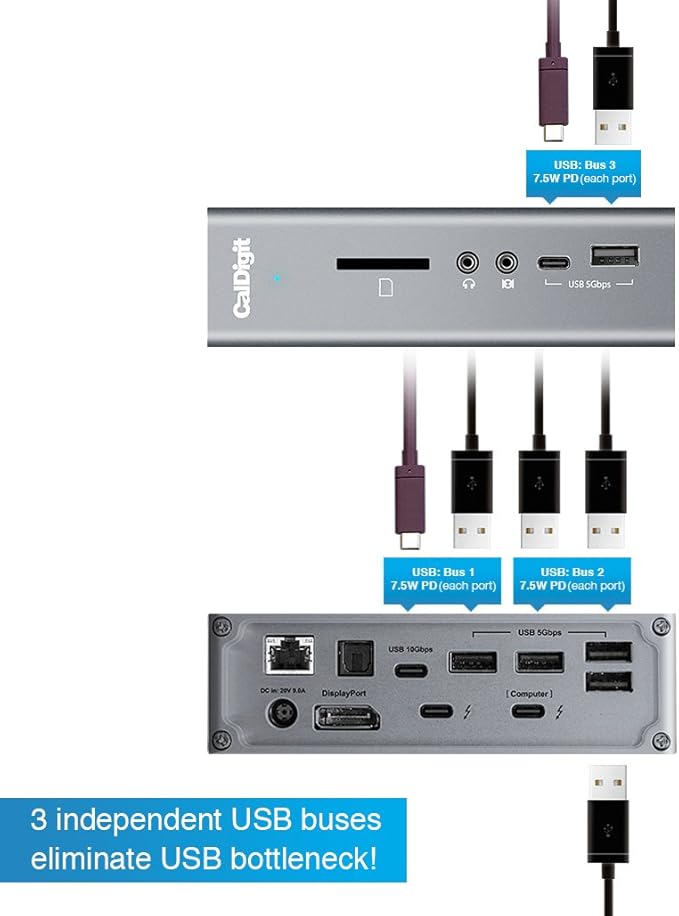

- 2x Thunderbolt 3 40Gb/s, DisplayPort 1.2, 5x USB-A & 1 USB-C 3.1 Gen 1 (5Gb/s), 1x USB-C 3.1 Gen2 (10Gb/s data only), Gigabit Ethernet, UHS-II SD Card Slot (SD 4.0), Optical Audio (S/PDIF), 3.5mm Stereo Audio In & Out. Vertical or horizontal orientation. Sturdy full aluminum construction with integrated heat sink without a fan.

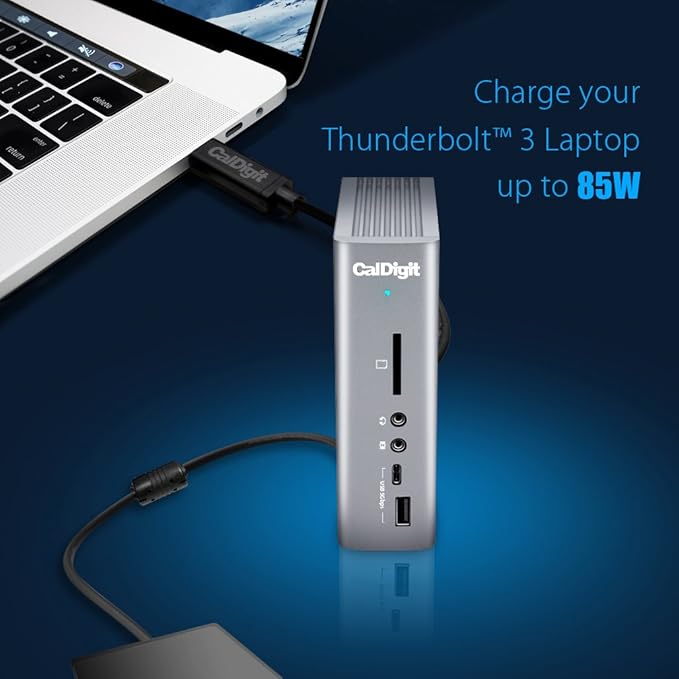

- Provides up to 87W to charge your laptop and power all of your USB peripherals. The secondary Thunderbolt 3 port provides 15W of power for downstream devices. Please note: Firmware update required for 87W

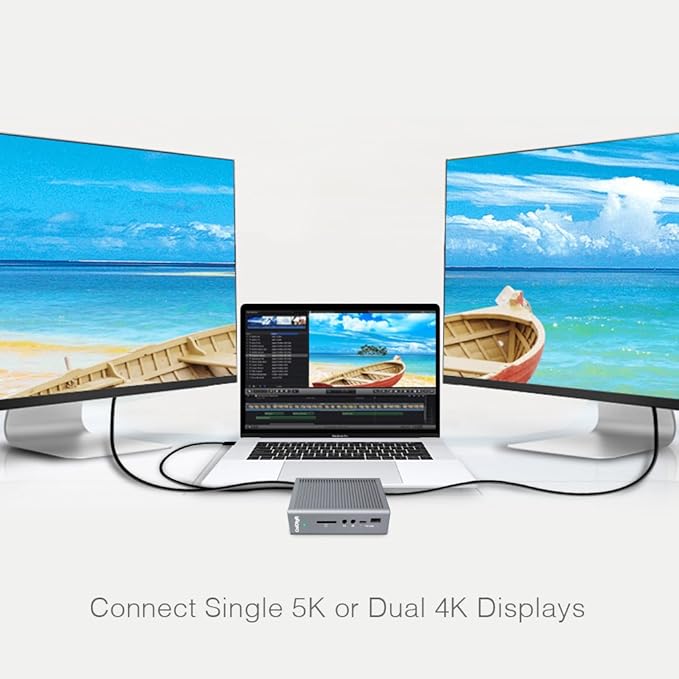

- Connect up to two 4K@60Hz (4096 x 2160 30-bit color) monitors via DisplayPort and Thunderbolt 3 / USB-C port, OR a Single 5K@60Hz display can be supported via the Thunderbolt 3 port. **M1 Macs cannot support dual display over Thunderbolt! (***DisplayPort to HDMI/DVI/VGA adapter / cable must be an ACTIVE type. Passive dongles/cables will not work.***)

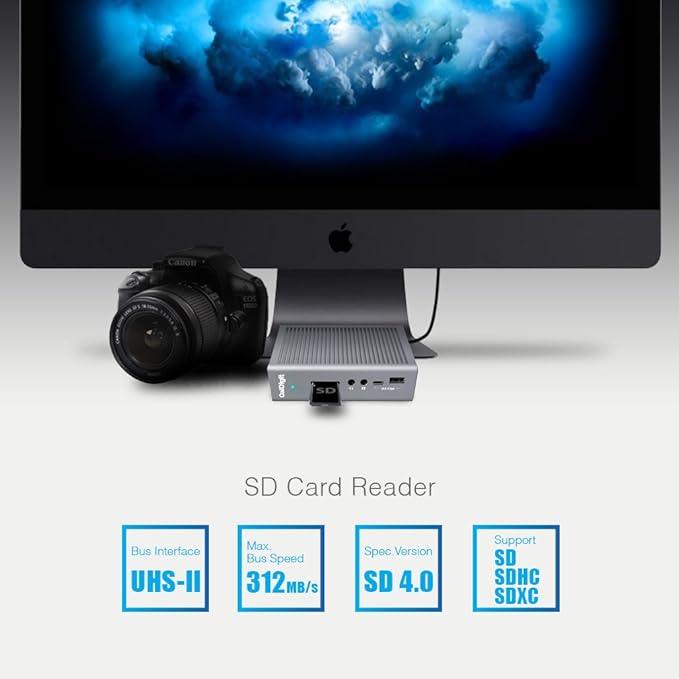

- Latest UHS-II SD card slot supports SD/SDHC/SDXC at up to 312 MB/s bus speed. Transfer full days of footage from your camera 3x faster than UHS-I counterpart!
- Ideal for M1, M2, M3 Macs, 2016+ MacBook Pro, 2017+ iMac Pro, iPad Pro with Thunderbolt, on Mac OS 10.12 or Windows 8/10 with a Thunderbolt 3 or Thunderbolt 4 port. **Your host device (computer/tablet) must have a Thunderbolt 3 or Thunderbolt 4 port to use the CalDigit TS3 Plus**
Why Choose the CalDigit TS3 Plus Thunderbolt 3 Dock - 87W Charging
The CalDigit TS3 Plus Thunderbolt 3 Dock - 87W Charging offers 2x thunderbolt 3 40gb/s, displayport 1.2, 5x usb-a and provides up to 87w to charge your laptop. These features make the CalDigit TS3 Plus Thunderbolt 3 Dock - 87W Charging a strong option in the Docking Stations category.
Best For
The CalDigit TS3 Plus Thunderbolt 3 Dock - 87W Charging is best suited for: M1.
Quick Summary
The CalDigit TS3 Plus Thunderbolt 3 Dock - 87W Charging is a Docking Stations product by CalDigit. Brand: CalDigit. Color: TS3 Plus - Space Gray. Hardware Interface: Thunderbolt, Thunderbolt 4, USB 3.0 Type C, USB 3.1 Type C, USB 3.2 Gen 2, USB 3.2 Gen 2×2, USB Type C Thunderbolt, Thunderbolt 4, USB 3.0 Type C, USB 3.1 Type C, USB 3.2 Gen 2, USB 3.2 Gen 2×2, USB Type C. Compatible Devices: MacBook Pro,Computer Or Tablet With Thunderbolt 3 Port,Computer Or Tablet With Thunderbolt 4 Port. Total USB Ports: 7. Price: $346.48.
Product Specifications
| Specification | Details |
|---|---|
| Brand | CalDigit |
| Color | TS3 Plus - Space Gray |
| Hardware Interface | Thunderbolt, Thunderbolt 4, USB 3.0 Type C, USB 3.1 Type C, USB 3.2 Gen 2, USB 3.2 Gen 2×2, USB Type C Thunderbolt, Thunderbolt 4, USB 3.0 Type C, USB 3.1 Type C, USB 3.2 Gen 2, USB 3.2 Gen 2×2, USB Type C |
| Compatible Devices | MacBook Pro,Computer Or Tablet With Thunderbolt 3 Port,Computer Or Tablet With Thunderbolt 4 Port |
| Total USB Ports | 7 |

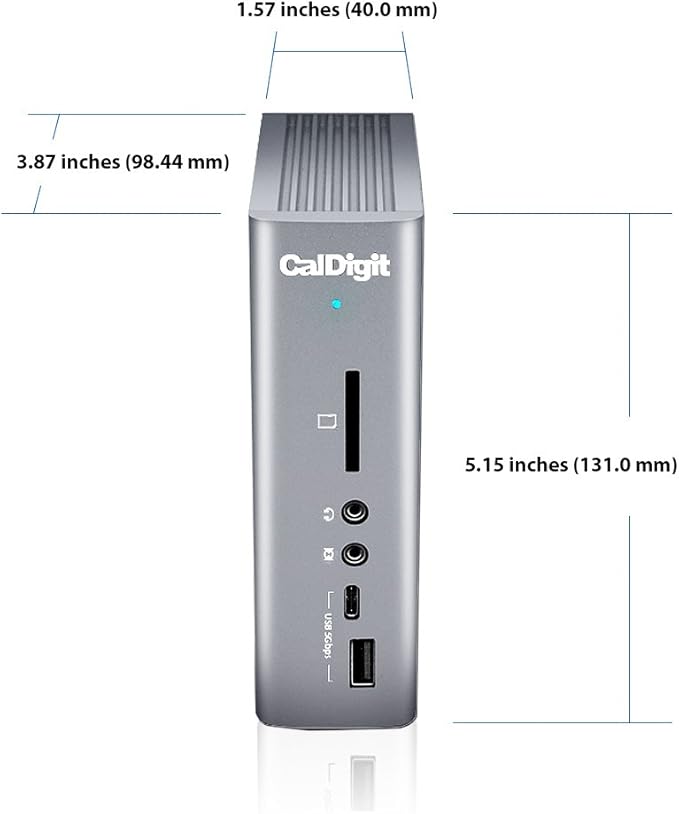

| Product Dimensions | 5.03"L x 1.85"W x 6.1"H |
| Number of Ports | 15 |
| Item Weight | 1.32 Pounds |
| Wattage | 85 watts |
