Product Overview
The JRready 50Set IP68 Waterproof Butt Splice Connectors Red MiniSeal Crimp Splice Kit 26–20 AWG (M81824/1-1) Wire-to-Wire Butt Terminals with PVDF/PE Heat Shrink Tubes ST6385-20-50 is a Butt product. It features packaging includes: the waterproof environmental splice connector kit contains 50.
Key Features

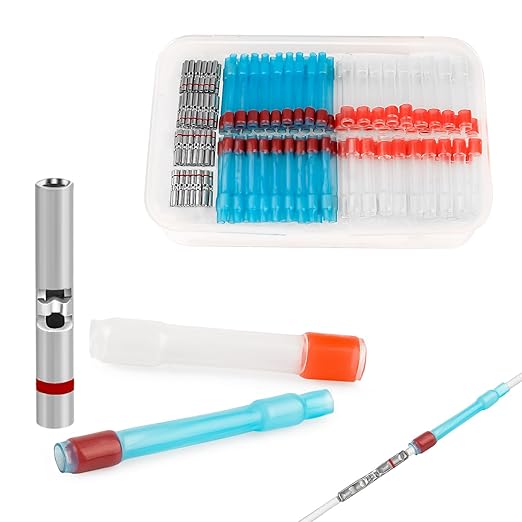

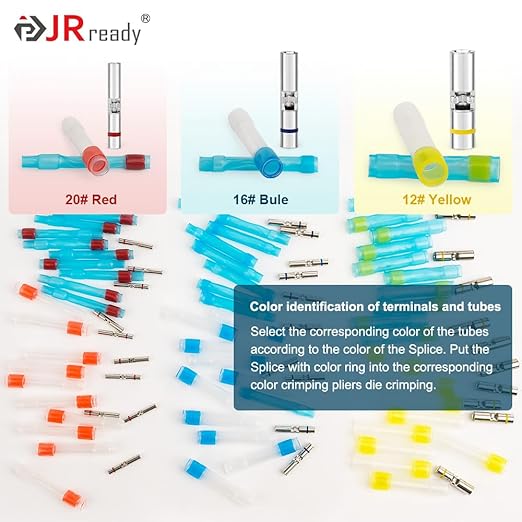

- Packaging Includes: The waterproof environmental splice connector kit contains 50 pcs red copper splice connectors (26-20 AWG), 50 pcs PVDF insulation sleeves, and 50 pcs PE insulation sleeves.

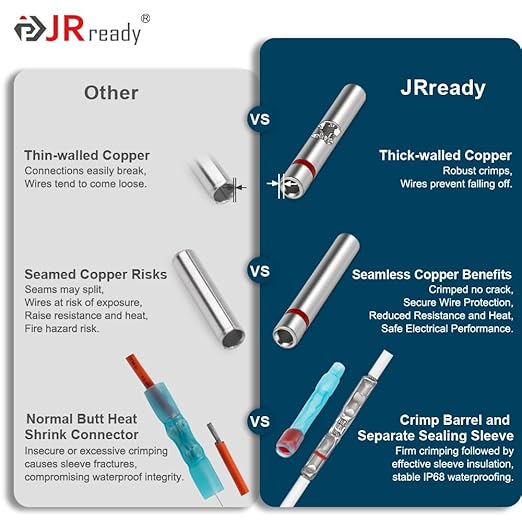

- Durably Built: This butt splice connectors kit includes 50 pcs of copper splice connectors suitable for 26-20 AWG (M81824/1-1). Crafted from robust seamless copper tubes with a 99.9% pure copper structure for excellent conductivity, and processed with a special heat treatment, they ensure secure, crack-free crimping. The butt wire splice connectors also feature a clear window design for easy wire inspection.

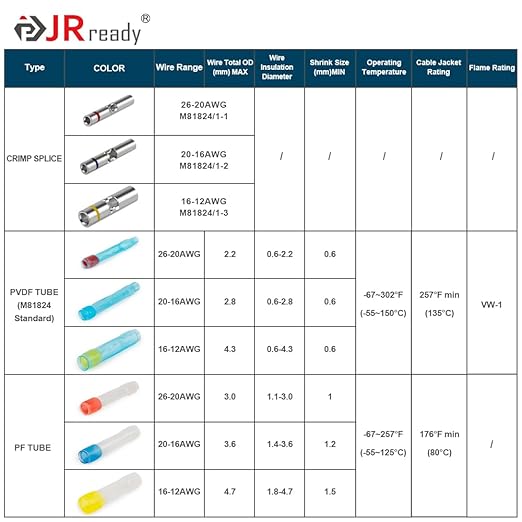

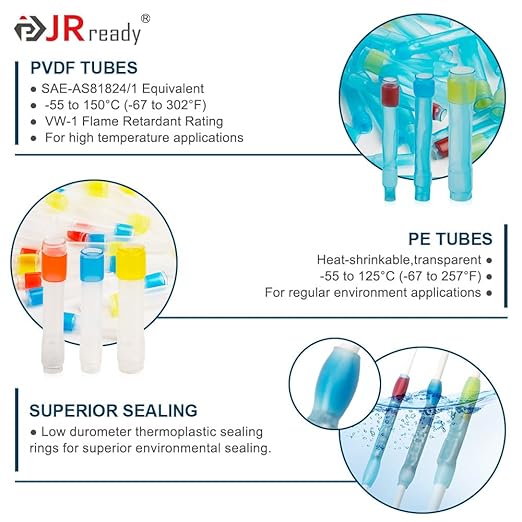

- High-Temperature Insulation: The PVDF Insulation Sleeve, equivalent to M81824/1, can withstand temperatures ranging from -67°F to 302°F (-55°C to 150°C). Transparent and heat-shrinkable, it facilitates effortless terminal observation. It features hot melt adhesive ends for IP68 waterproof sealing, and the PVDF Insulation Sleeve boasts a VW-1 flame rating.Suitable for cable jacket applications with a maximum temperature resistance of 275°F（135°C).
- PE Insulation Sleeve: Additionally, we provide 50pcs PE Insulation Sleeves suitable for temperatures from -67°F to 257°F (-55°C to 125°C). These sleeves offer reliable protection,suitable for cable jacket applications with a maximum temperature resistance of 176°F（80°C).

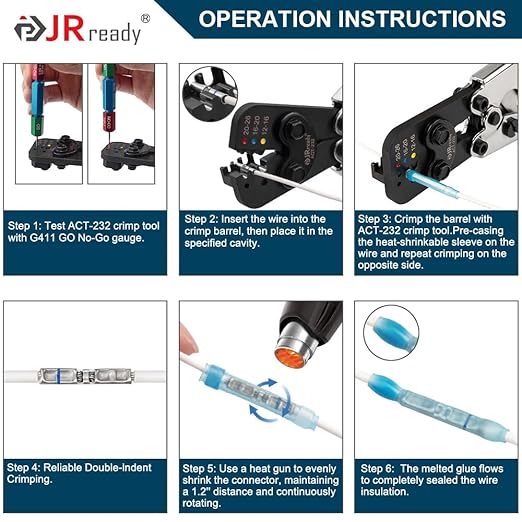

- Specialized Crimp Tool: The ACT-232 hand crimp tool(Equivalent to TE's AD-1377), is ideal for environmental sealing splices (sizes 12, 16, and 20). Its double-indent crimping ensures secure connections without wire slippage, making it a reliable choice for your crimping needs.
- Superior Connections: JRready M81824/1 Series Waterproof Heat-Shrinkable Splice, which is smaller and lighter, represents the superior choice for wire connections. These compact and lightweight connectors, when paired with insulation sleeves and heat-shrink sealing, provide outstanding waterproof performance for your wire connection requirements.
Why Choose the JRready 50Set IP68 Waterproof Butt Splice Connectors Red MiniSeal Crimp Splice Kit 26–20 AWG (M81824/1-1) Wire-to-Wire Butt Terminals with PVDF/PE Heat Shrink Tubes ST6385-20-50
The JRready 50Set IP68 Waterproof Butt Splice Connectors Red MiniSeal Crimp Splice Kit 26–20 AWG (M81824/1-1) Wire-to-Wire Butt Terminals with PVDF/PE Heat Shrink Tubes ST6385-20-50 offers packaging includes: the waterproof environmental splice connector kit and durably built: this butt splice connectors kit includes. These features make the JRready 50Set IP68 Waterproof Butt Splice Connectors Red MiniSeal Crimp Splice Kit 26–20 AWG (M81824/1-1) Wire-to-Wire Butt Terminals with PVDF/PE Heat Shrink Tubes ST6385-20-50 a strong option in the Butt category.
Best For
The JRready 50Set IP68 Waterproof Butt Splice Connectors Red MiniSeal Crimp Splice Kit 26–20 AWG (M81824/1-1) Wire-to-Wire Butt Terminals with PVDF/PE Heat Shrink Tubes ST6385-20-50 is best suited for: 26-20 AWG (M81824/1-1), cable jacket applications with a maximum temperature resistance of 275°F（135°C), temperatures from -67°F to 257°F (-55°C to 125°C), environmental sealing splices (sizes 12.
Quick Summary
The JRready 50Set IP68 Waterproof Butt Splice Connectors Red MiniSeal Crimp Splice Kit 26–20 AWG (M81824/1-1) Wire-to-Wire Butt Terminals with PVDF/PE Heat Shrink Tubes ST6385-20-50 is a Butt product by JRready. Color: 20#Red-50Sets. Connector Type: Butt Splice, Crimp. Contact Material: Copper. Insulation Material: Polyethylene. Terminal: Butt Terminal. Price: $70.93.
Product Specifications
| Specification | Details |
|---|---|
| Color | 20#Red-50Sets |
| Connector Type | Butt Splice, Crimp |
| Contact Material | Copper |
| Insulation Material | Polyethylene |
| Terminal | Butt Terminal |
