Product Overview
The JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3) is a Butt product. It features durably built: this butt splice connectors kit includes 50pcs of.
Key Features

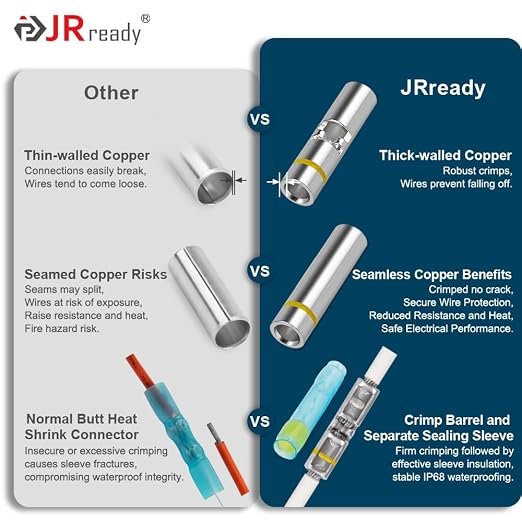

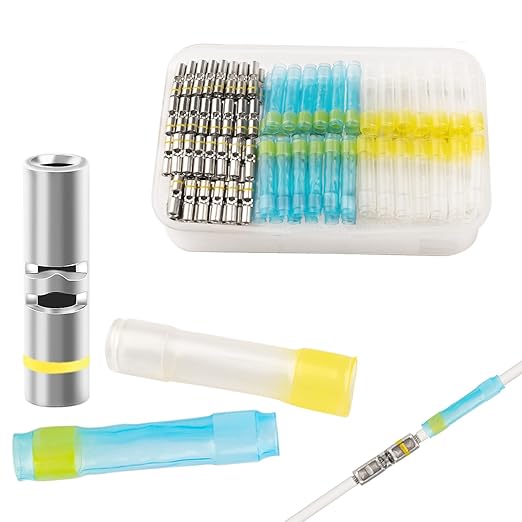

- Durably Built: This butt splice connectors kit includes 50pcs of Crimp Connectors suitable for 16-12 AWG (M81824/1-3). They are crafted from robust seamless copper tubes to ensure secure, crack-free crimping, and feature a clear window design for easy wire inspection.

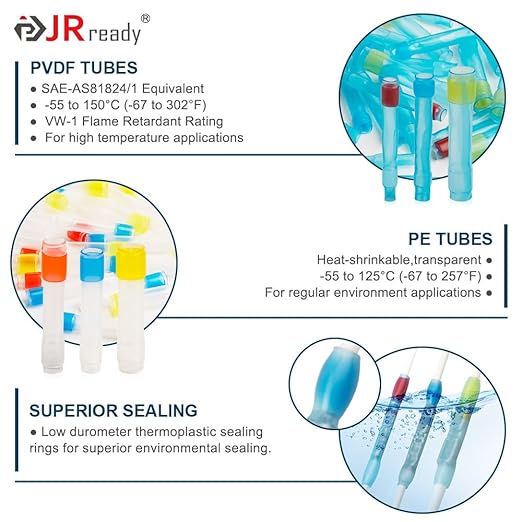

- High-Temperature Insulation: The PVDF Insulation Sleeve, equivalent to M81824/1,can withstand temperatures ranging from -67°F to 302°F (-55°C to 150°C).Transparent and heat-shrinkable, it facilitates effortless terminal observation. It features hot melt adhesive ends for IP68 waterproof sealing, and the PVDF Insulation Sleeve boasts a VW-1 flame rating.Suitable for cable jacket applications with a maximum temperature resistance of 275°F（135°C).
- PE Insulation Sleeve: Additionally, we provide 50pcs PE Insulation Sleeves suitable for temperatures from -67°F to 257°F (-55°C to 125°C). These sleeves offer reliable protection,suitable for cable jacket applications with a maximum temperature resistance of 176°F（80°C).

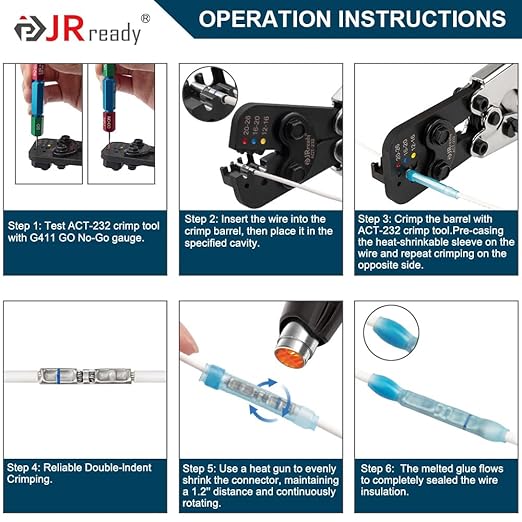

- Specialized Crimp Tool: The ACT-232 hand crimp tool(Equivalent to TE's AD-1377), is ideal for environmental sealing splices (sizes 12, 16, and 20). Its double-indent crimping ensures secure connections without wire slippage, making it a reliable choice for your crimping needs.
- Electrical Crimping Butt Connectors: The JRready MiniSeal Crimp Connector Kit, which is smaller and lighter, represents the superior choice for wire connections. These compact and lightweight connectors, when paired with insulation sleeves and heat-shrink sealing, provide outstanding waterproof performance for your wire connection requirements.
Why Choose the JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3)
The JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3) offers durably built: this butt splice connectors kit includes and high-temperature insulation: the pvdf insulation sleeve, equivalent to. These features make the JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3) a strong option in the Butt category.
Best For
The JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3) is best suited for: 16-12 AWG (M81824/1-3), cable jacket applications with a maximum temperature resistance of 275°F（135°C), temperatures from -67°F to 257°F (-55°C to 125°C), environmental sealing splices (sizes 12.
Quick Summary
The JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3) is a Butt product by JRready. Color: 12#Yellow-50Sets. Connector Type: Butt Splice, Crimp. Contact Material: Copper. Insulation Material: Polyethylene. Terminal: Butt Terminal. Price: $74.23.

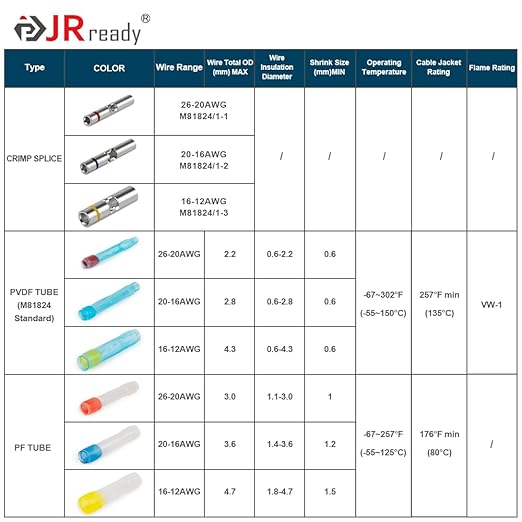

Product Specifications
| Specification | Details |
|---|---|
| Color | 12#Yellow-50Sets |
| Connector Type | Butt Splice, Crimp |
| Contact Material | Copper |
| Insulation Material | Polyethylene |
| Terminal | Butt Terminal |
