JRready ST6385-16-50 MiniSeal Crimp Splice 50Sets Blue Butt Splice Connectors

Product Overview

The JRready ST6385-16-50 MiniSeal Crimp Splice 50Sets Blue Butt Splice Connectors 20-16 AWG (M81824/1-2) Wire-to-Wire Heat Shrink Butt Connector with Alternative Temp. PVDF/PE Tubes is a Butt product. It features [ip68 waterproof butt splice connectors] jrready m81824/1 series waterproof heat-shrinkable.

Key Features

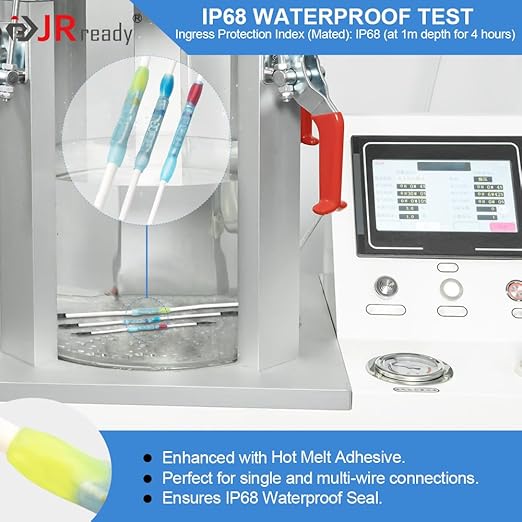

• [IP68 Waterproof Butt Splice Connectors] JRready M81824/1 Series Waterproof Heat-Shrinkable Splice: Compact, lightweight, and with an IP68 waterproof rating. Ideal for harsh environments, they ensure a secure, waterproof connection with PVDF or PE insulation sleeves and heat-shrink sealing.

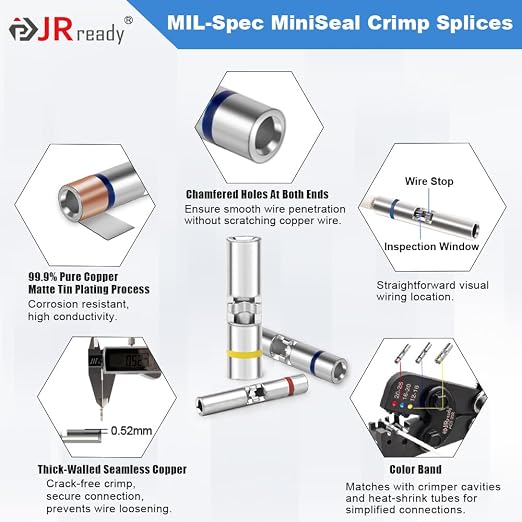

• [Copper Tube Crimp Splice Advantages] Utilizing 99.9% pure copper with a matte tin plating, the butt splice connectors offer outstanding corrosion resistance and conductivity. Chamfered holes at both ends ensure smooth wire penetration without scratching. The Inspection Window allows for straightforward visual location of wiring. The Color Bands correspond with crimp tool cavities and heat-shrink tubes, ensuring an easy and accurate installation.

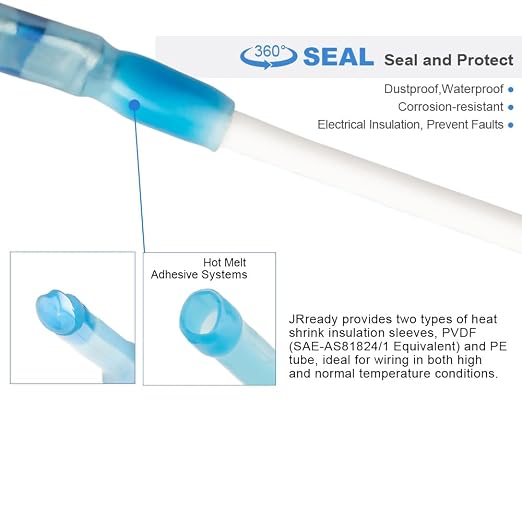

• [3:1 Premium Heat Shrink Tube] JRready offers two types of heat shrink tubes, PVDF and PE, specifically designed for use with their MIL-Spec MiniSeal Crimp Splices. PVDF tubes, operating from -67°F to 302°F (-55°C to 150°C) and suitable for wires above 275°F (135°C), boast IP68 and VW-1 ratings. PE tubes, ideal from -67°F to 257°F (-55°C to 125°C) for wires above 176°F (80°C), ensure a reliable seal. Both types feature color bands and hot melt adhesive for seamless sealing.
• [Separated Copper Barrel and Heat Shrink Sleeve Design] MiniSeal crimp splices feature a design with a plated copper crimp barrel and a separate sealing sleeve, effectively preventing insulation damage during the crimping process. This design is ideal for outdoor applications, offering reliable protection in various environmental conditions.

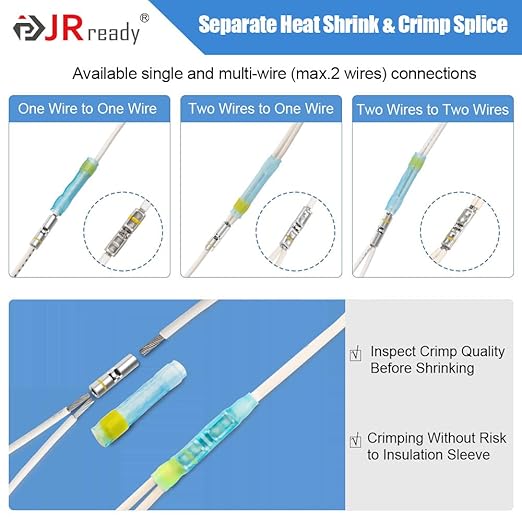

• [JRready Wire Butt Splice Connectors] JRready's Butt (In-line) splice connectors offer versatile in-line splicing solutions. These connectors are suitable for both single and multi-wire(max. 2 wire) connections, ensuring reliable connectivity for various wiring projects.

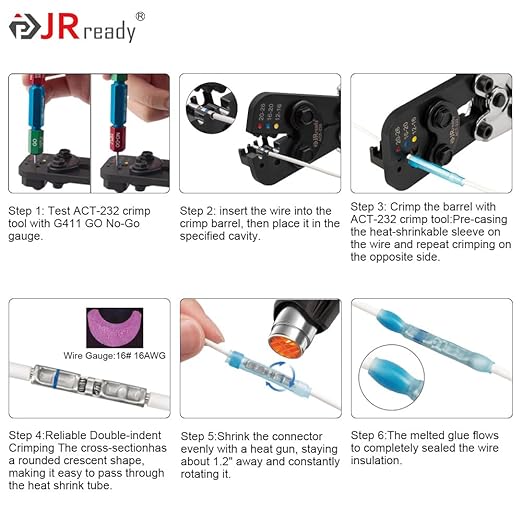

• [Crimp tool for M81824/1 Splices] The ACT-232 hand crimp tool (Equivalent to TE's AD-1377) is designed for M81824/1 Series Heat Shrink Butt Connectors, featuring three cavities for 16# (20-16 AWG), 20# (26-20 AWG), and 12# (16-12 AWG). Its high-carbon steel build and double-indent crimping ensure secure, slip-free connections.

Why Choose the JRready ST6385-16-50 MiniSeal Crimp Splice 50Sets Blue Butt Splice Connectors 20-16 AWG (M81824/1-2) Wire-to-Wire Heat Shrink Butt Connector with Alternative Temp. PVDF/PE Tubes

The JRready ST6385-16-50 MiniSeal Crimp Splice 50Sets Blue Butt Splice Connectors 20-16 AWG (M81824/1-2) Wire-to-Wire Heat Shrink Butt Connector with Alternative Temp. PVDF/PE Tubes offers [ip68 waterproof butt splice connectors] jrready m81824/1 series and [copper tube crimp splice advantages] utilizing 99.9% pure. These features make the JRready ST6385-16-50 MiniSeal Crimp Splice 50Sets Blue Butt Splice Connectors 20-16 AWG (M81824/1-2) Wire-to-Wire Heat Shrink Butt Connector with Alternative Temp. PVDF/PE Tubes a strong option in the Butt category.

Best For

The JRready ST6385-16-50 MiniSeal Crimp Splice 50Sets Blue Butt Splice Connectors 20-16 AWG (M81824/1-2) Wire-to-Wire Heat Shrink Butt Connector with Alternative Temp. PVDF/PE Tubes is best suited for: harsh environments, use with their MIL-Spec MiniSeal Crimp Splices, outdoor applications, both single and multi-wire(max.

Quick Summary

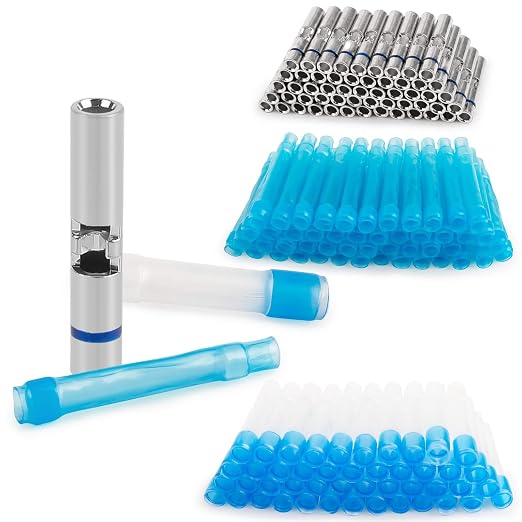

The JRready ST6385-16-50 MiniSeal Crimp Splice 50Sets Blue Butt Splice Connectors 20-16 AWG (M81824/1-2) Wire-to-Wire Heat Shrink Butt Connector with Alternative Temp. PVDF/PE Tubes is a Butt product by JRready. Color: 16#Blue-50Sets. Connector Type: Crimp. Contact Material: Copper. Insulation Material: Polyethylene. Terminal: Butt Terminal. Price: $72.09.

Product Specifications
