Product Overview
The Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating is a Screw product. It features eight connections with 4 x 5/16" stainless steel studs and.
Key Features

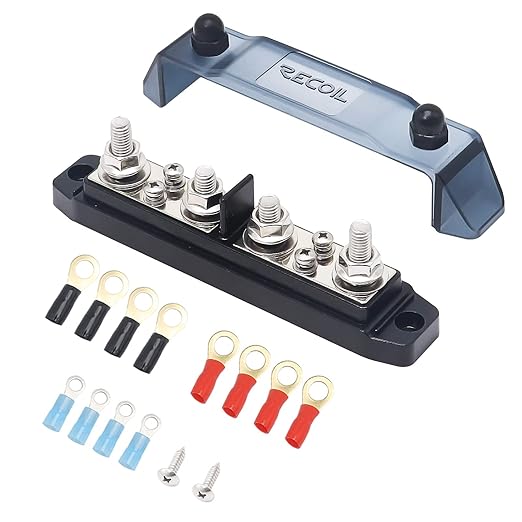

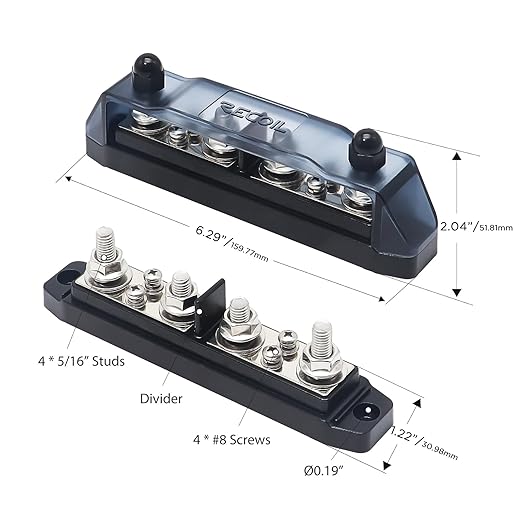

- Eight connections with 4 x 5/16" stainless steel studs and 4 x #8 stainless steel screws. Comes with 4 x 8AWG 5/16”, 4 x 10AWG 5/16”and 4 x #8 insulated ring terminals

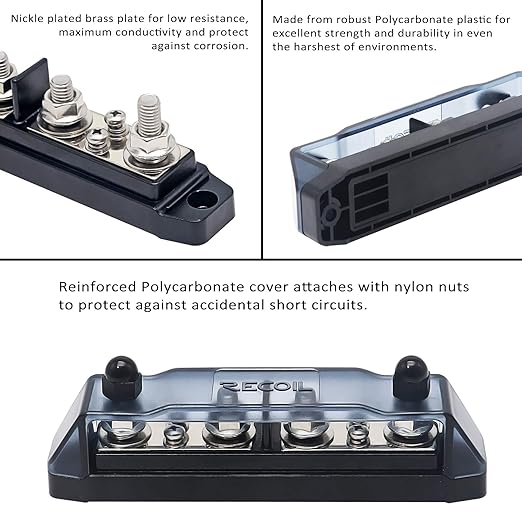

- Reinforced Polycarbonate cover attaches with nylon nuts to protect against accidental short circuits

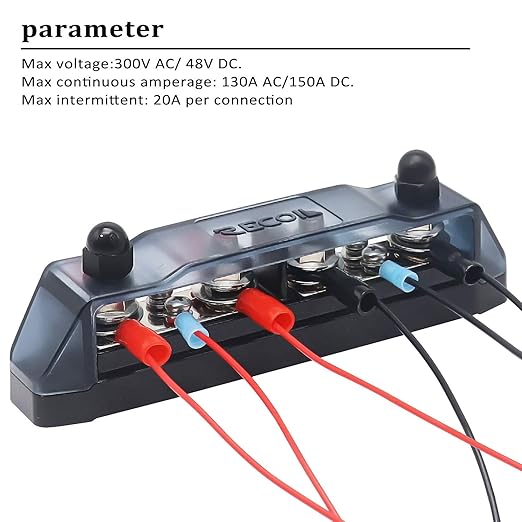

- Max voltage:300V AC/ 48V DC. Max continuous amperage: 130A AC/150A DC

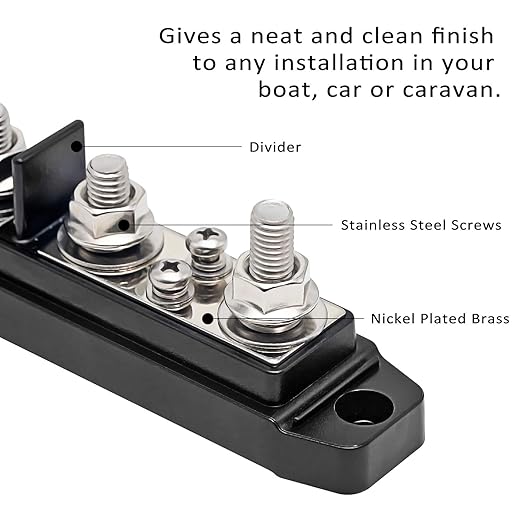

- Nickle plated brass plate for low resistance, maximum conductivity and protect against corrosion. Made from robust Polycarbonate plastic for excellent strength and durability in even the harshest of environments
- Gives a neat and clean finish to any installation in your boat, car or caravan
Why Choose the Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating
The Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating offers eight connections with 4 x 5/16" stainless steel and reinforced polycarbonate cover attaches with nylon nuts to. These features make the Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating a strong option in the Screw category.
Best For
The Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating is best suited for everyday screw needs.
Quick Summary
The Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating is a Screw product by Recoil. Current Rating: 150 Amps. Item Pitch: 0.25 Inches. Gauge: 8.0. Connector Type: Screw. Number Of Contacts: 8. Price: $26.38.
Product Specifications
| Specification | Details |
|---|---|
| Current Rating | 150 Amps |
| Item Pitch | 0.25 Inches |
| Gauge | 8.0 |
| Connector Type | Screw |
| Number Of Contacts | 8 |
| Mounting Type | Surface Mount |
| Material | Brass, Plastic, Polycarbonate (PC), Stainless Steel |
| Brand | RECOIL |
| Voltage | 300 Volts |
| Number Of Poles | 8 |
