Product Overview
The Gebildet Rolling Door Contact Magnetic Reed Switch Alarm with 3 Wires for N.O./N.C. Applications MC-52 is a Home Security Systems product by Gebildet. It features [specification] - current: 0.5a ; voltage: 100v ; power rating:.
Key Features
- [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 15mm

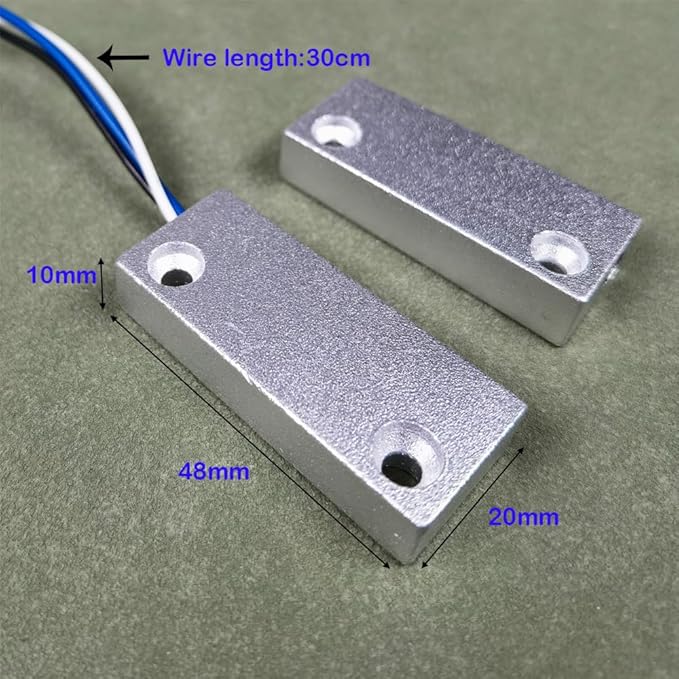

- [Dimension] - Cable Length: 30cm/11.8"; Total Size: 49 x 19.5 x 10mm / 1.93 x 0.77 x 0.39 inch (L*W*H)
- [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance

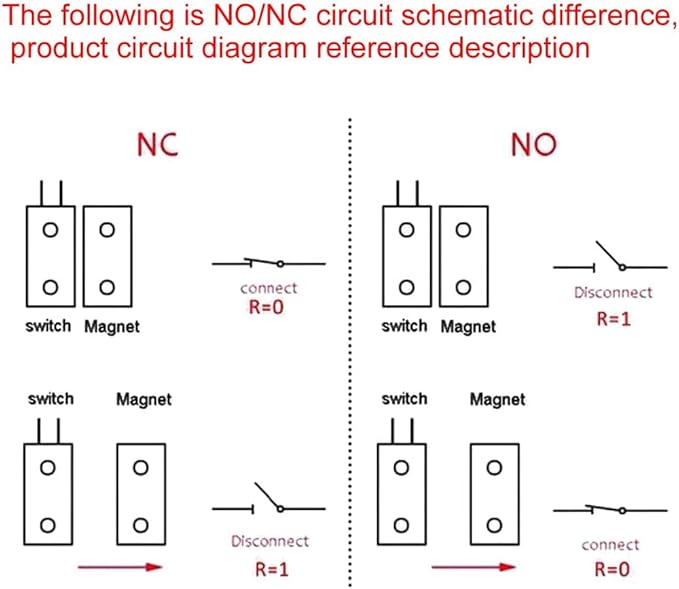

- [N.O./N.C.] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). N.O. means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, pls check carefully!
- [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.
Why Choose the Gebildet Rolling Door Contact Magnetic Reed Switch Alarm with 3 Wires for N.O./N.C. Applications MC-52
The Gebildet Rolling Door Contact Magnetic Reed Switch Alarm with 3 Wires for N.O./N.C. Applications MC-52 offers [specification] - current: 0.5a ; voltage: 100v ; and [dimension] - cable length: 30cm/11.8"; total size: 49. These features make the Gebildet Rolling Door Contact Magnetic Reed Switch Alarm with 3 Wires for N.O./N.C. Applications MC-52 a strong option in the Home Security Systems category.
Best For
The Gebildet Rolling Door Contact Magnetic Reed Switch Alarm with 3 Wires for N.O./N.C. Applications MC-52 is best suited for: use with window and door alarm systems.
Quick Summary
The Gebildet Rolling Door Contact Magnetic Reed Switch Alarm with 3 Wires for N.O./N.C. Applications MC-52 is a Home Security Systems product by Gebildet. Operation Mode: automatic. Current Rating: 0.5 Amps. Operating Voltage: 100 Volts. Contact Type: Normally Open, Normally Closed. Connector Type: Screw. Price: $16.48.
Product Specifications
| Specification | Details |
|---|---|
| Operation Mode | automatic |
| Current Rating | 0.5 Amps |
| Operating Voltage | 100 Volts |
| Contact Type | Normally Open, Normally Closed |
| Connector Type | Screw |
| Brand | Gebildet |
| Terminal | Screw |
| Circuit Type | 2-way |
| Contact Material | Metal |
| Control Method | Sensor |
| Switch Type Reed Switch | Mounting Type Flush Mount |
